Product Specifications
| Model | SD-305 | |

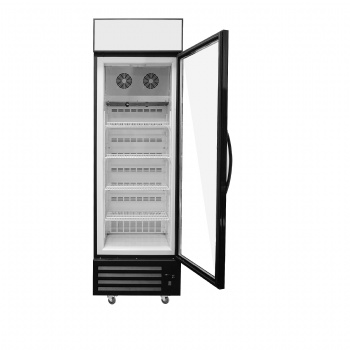

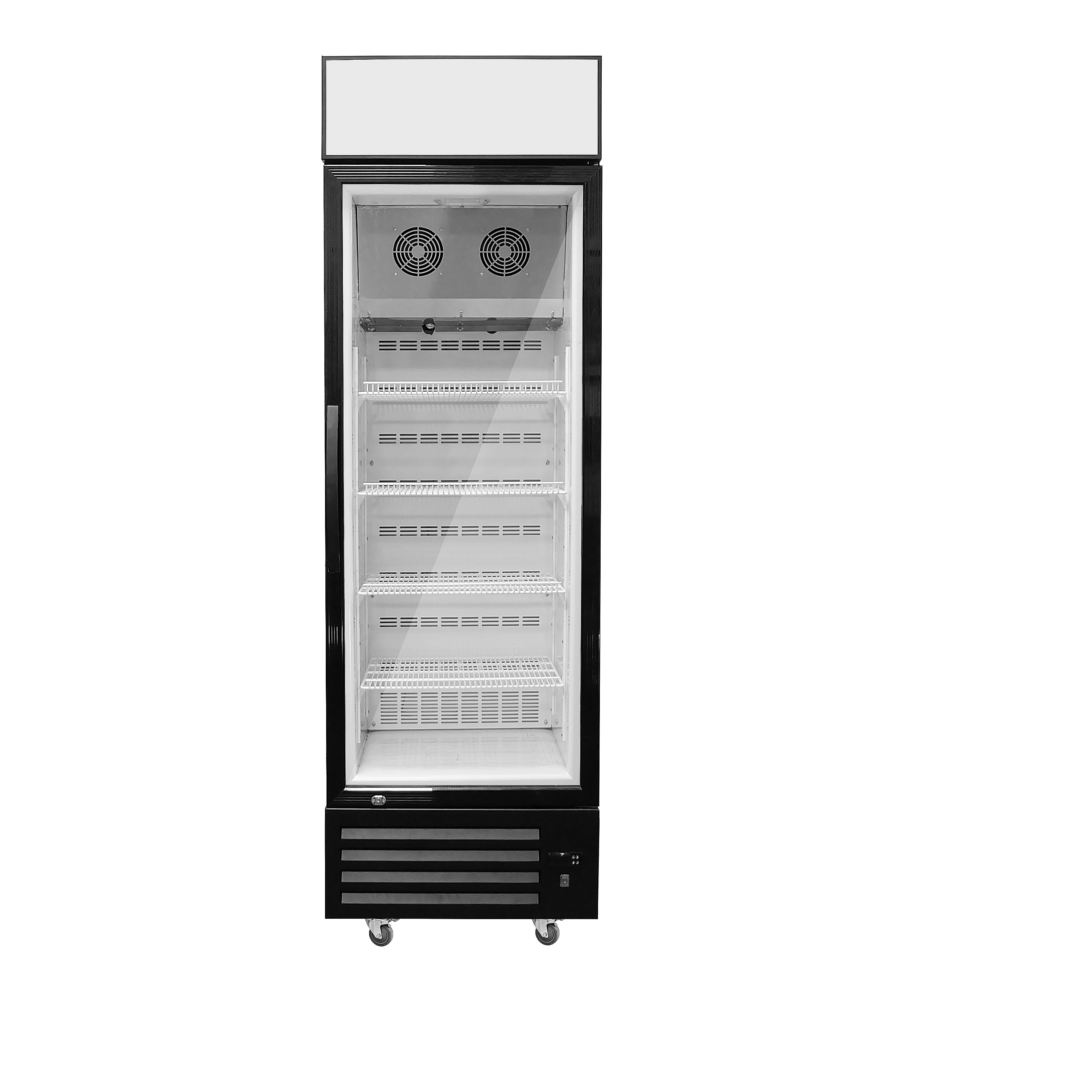

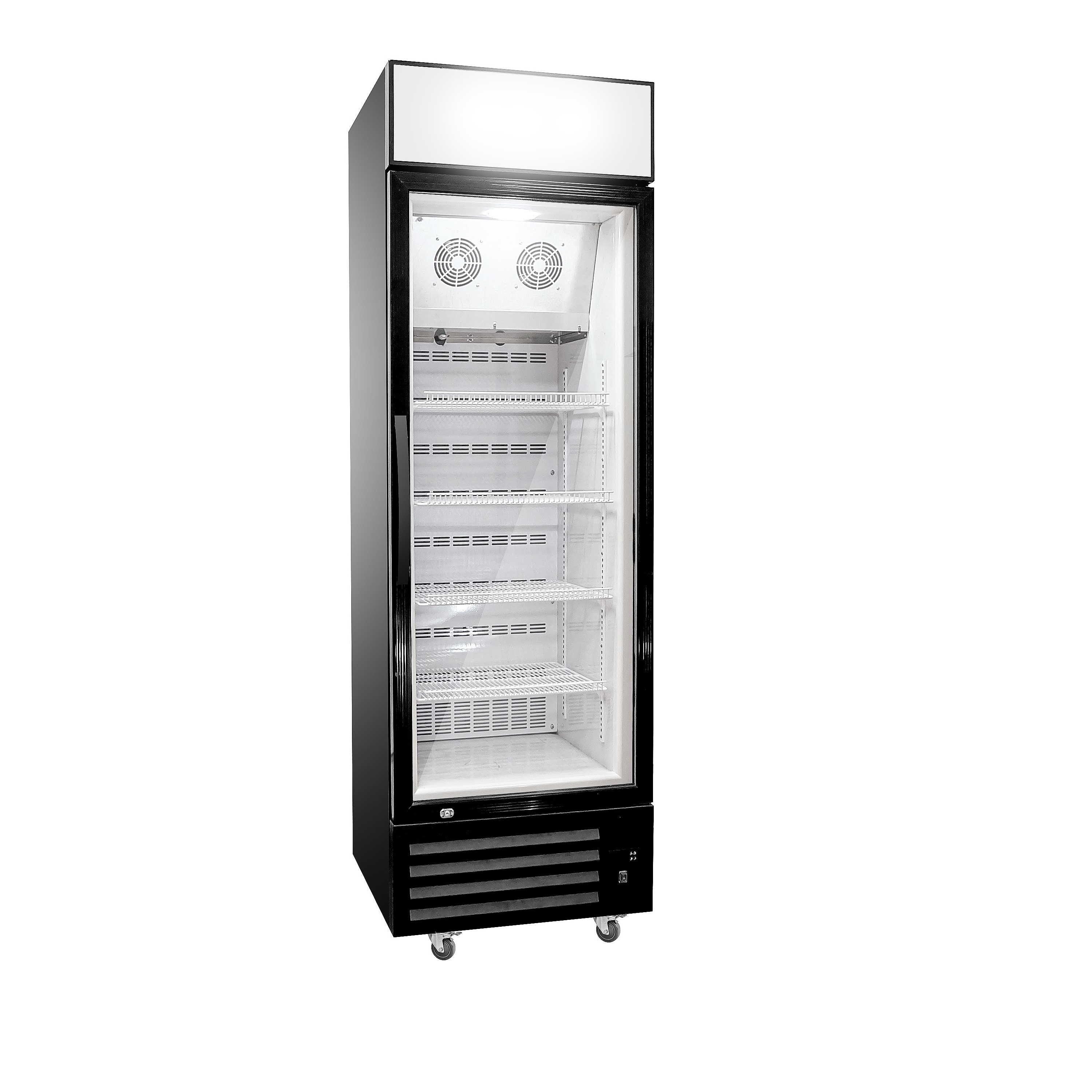

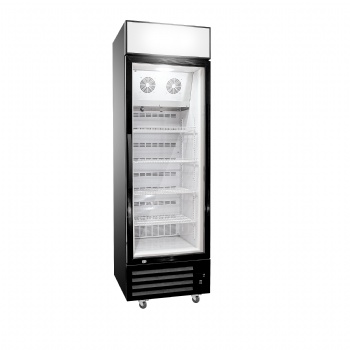

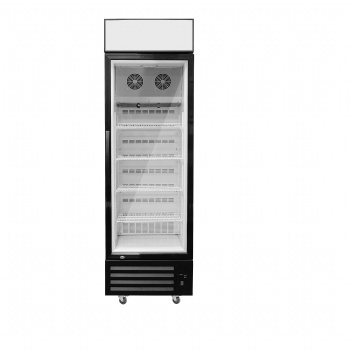

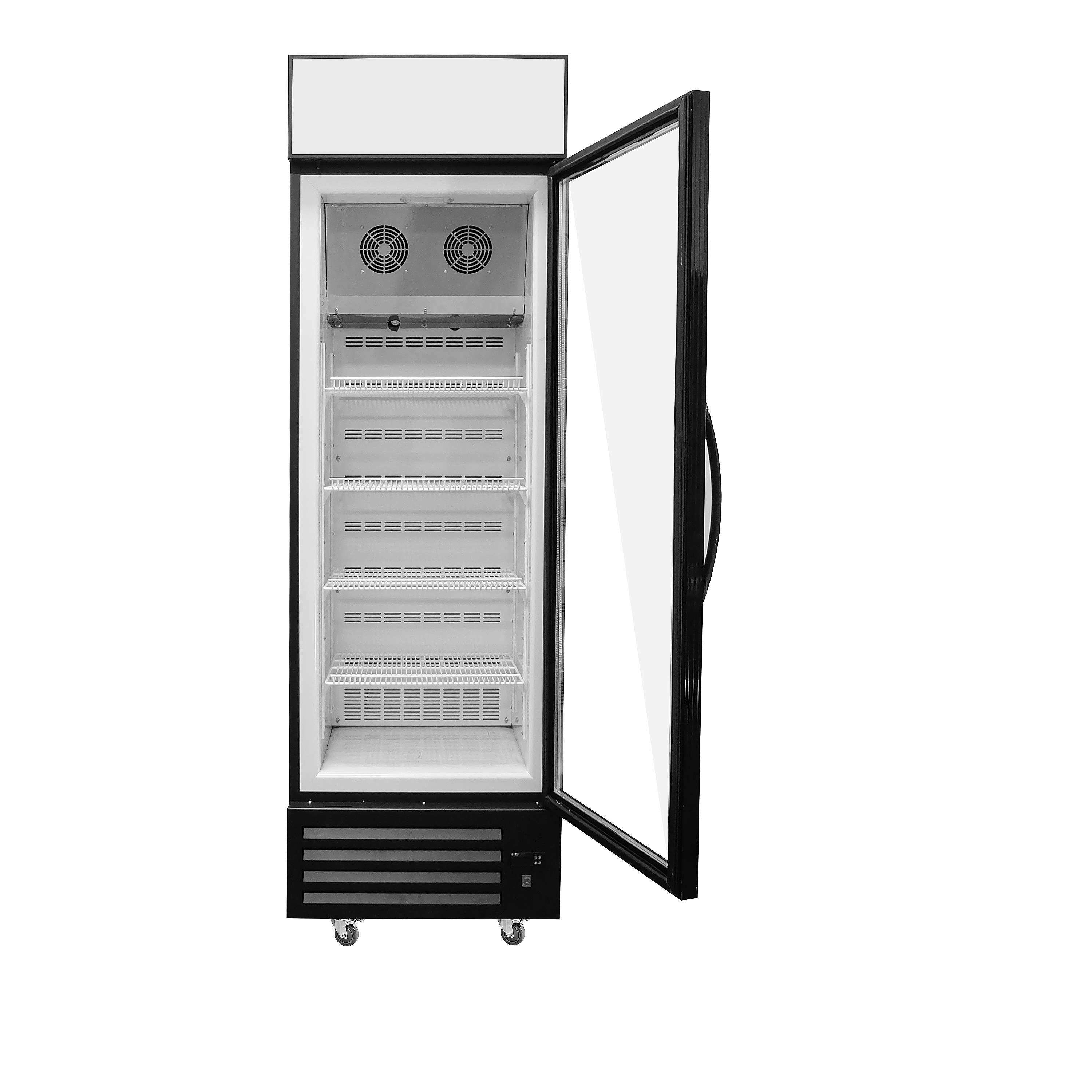

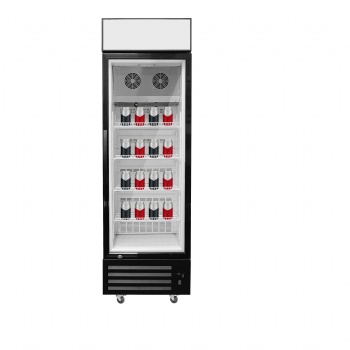

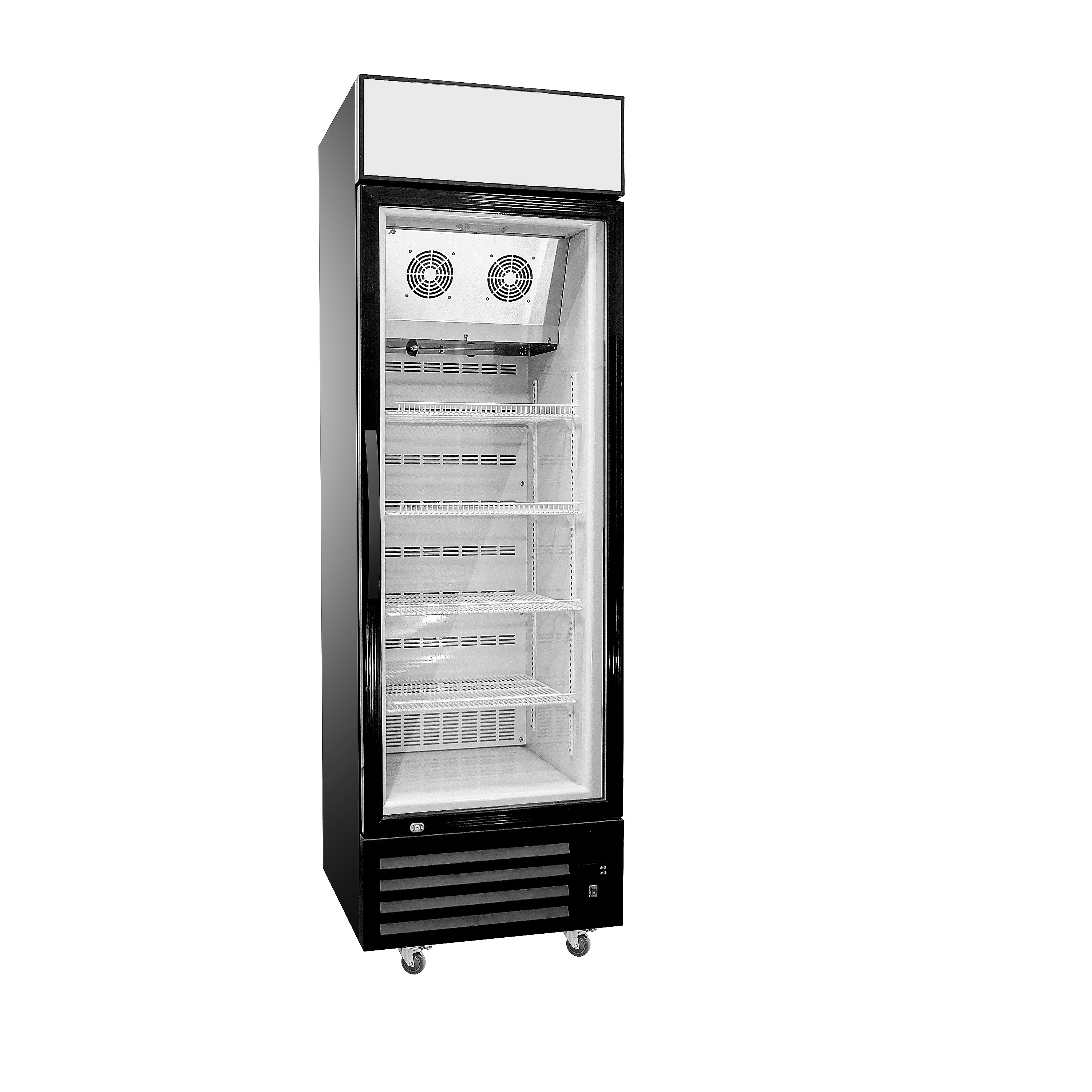

| Product Description | Upright Freezer | |
| Type of appliance (FS=free standing / BI= built-in) | FS | |
| Energy efficiency class | / | |
| Climate class (N= + 16-32°C T=+ 18-43°C) | 25°C | |
| Freezer star rating | / | |
| Approvals (VDE / TÜV / IMQ / NF / ÖVE / DEMKO etc.) | CE | |
| Certifications | CE/ISO9001 | |
| Key features | ||
| Total net capacity | Liters | 302 |
| Total net capacity | Cubic feet | 10.7 |
| Energy consumption | kWh/year | 912.5 |
| Defrosting (Manual-Automatic) | Manual | |
| Kind of coolant (R134a/R600a) | R290 | |
| Foaming components (C-P) | C-P | |
| Technical data | ||
| Voltage / frequency | V/Hz | 115/60 |
| Input power / main fuse minimum | W /A | 425/16 |
| Length of cable / incl. plug | cm | |
| Temperature range (from>to) | °C | -25~-18 |
| Energy consumption (EN153) per 24 h | kWh/24 h | 2.50 |
| Running amps at start up | A | 3.00 |
| Cooling system: (K=Compressor / A=Absorbtion) | K | |
| Maximum noise level | dB(A) | 65 |
| evaporator type | Finned type | |
| compressor type / size | ||
| Aesthetics | ||
| Door | Glass | |
| Colours: | White/Per customer | |
| Cabinet | White | |
| Top | White | |
| Door glass | Transparent(Heating) | |
| Door frame | Gray(Aluminium) PVC | |
| Equipment & accessories | ||
| Product classification (Super eco / Eco / Standard) | Standard | |
| Inside walls (Stainless steel/Aluminium/Synthethic mat.) | Aluminium | |
| Walls thickness | mm | 70 |
| Top lamp box | Optional | |
| Inner Fan | YES | |
| Shelves / Baskets number | n° | 4shelves/metal |
| Defrost drain | - | |
| Interior light | NO | |
| Adjustable thermostat | Yes Electronic | |
| Thermometer (Outside / In partition) | Without | |
| Adjustable feet (front / rear) | n° | 4 |
| Mobility wheels (front / rear) | n° | No |
| self closing door | Yes | |
| branding available | ||
| Product net dimensions (without canopy) | ||
| Unit dimensions (W*D*H) | mm | 620*620*2030 |
| Depth with open lid | mm | 1240 |
| Net weight | kg | 83 |
| Packing dimensions & loadability (without canopy) | ||
| Packing dimensions (W*D*H) | mm | 670*685*2185 |
| Gross weight | kg | 89 |
| 20 ' GP | pcs | 24 |
| 40 'GP | pcs | 51 |
| 40 ' HQ | pcs | 51 |
CE,CB,ETL,SASO for refrigerated display cabinet,glass door refrigerator,beverage cooler
